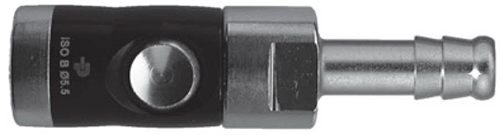

Coupler air hosetail with button DN6 ISO B

Automatic safety coupler with button, nipple body, in black anodized aluminum and nickel-plated brass. Nominal diameter: 6 mm. Teat diameter: 6, 8 or 10 mm. Flow rate: 675 l/min. Maximum operating pressure: 12 bar

Codes Bobet : 24607, 24608, 24609

 See

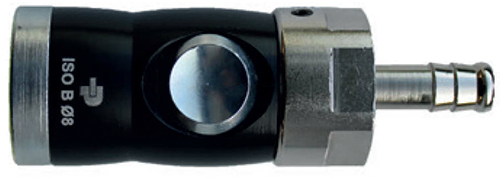

Coupler air hosetail with button DN8 ISO B

Automatic push-button safety coupling with nipple body in black anodised aluminium and nickel-plated brass. Nominal diameter: 8 mm. Nipple diameter: 8 or 10 mm. Flow rate: 1470 l/min. Maximum operating pressure: 12 bar

Codes Bobet : 24617, 24618

 See

Coupler air hosetail DN6 ISO B

Safety quick acting coupler, hosetail body. Nominal diameter : 6 mm. Hosetail diameter : 6, 8 or 10 mm. Flow : 1250 Nl/min. Bore : 5.5 mm. Maximum working pressure : 16 bars

Codes Bobet : 10966, 10967, 10968

 See

Coupler air hosetail DN8 ISO B

Safety quick acting coupler, hosetail body. Nominal diameter : 8 mm. Hosetail diameter : 8, 10 or 13 mm. Flow : 2400 Nl/min. Bore : 8 mm. Maximum working pressure : 16 bars

Codes Bobet : 11014, 11015, 11016

 See

Nipple air DN6 hosetail ISO B

Nipple with hosetail. Nickel-plated steel body. Nominal diameter : 6 mm. Hosetail diameter : 6, 8 or 10 mm. Flow : 1250 Nl/min. Bore : 5.5 mm. Maximum working pressure : 16 bars.

Codes Bobet : 10975, 10976, 10977

 See

Nipple air DN8 hosetail ISO B

Nipple with hosetail. Nickel-plated steel body. Nominal diameter : 8 mm. Hosetail diameter : 8, 10 or 13 mm. Flow : 2400 Nl/min. Bore : 8 mm. Maximum working pressure : 16 bars.

Codes Bobet : 10993, 10994, 10995

 See

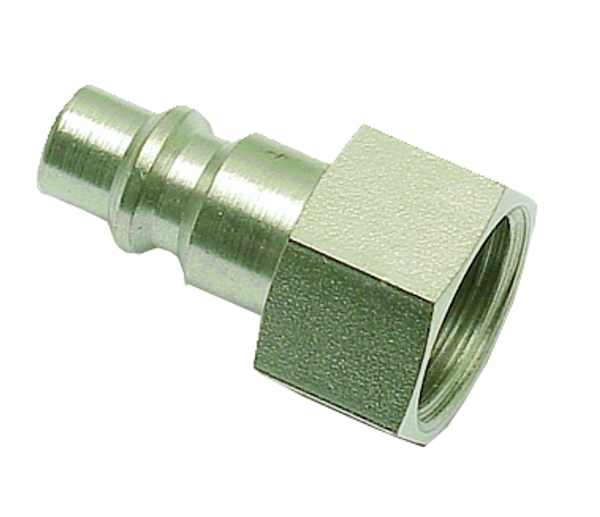

Female nipple air BSP DN6 ISO B

Female nipple BSP parallel. Nickel-plated steel body. Nominal diameter : 6 mm. Flow : 1250 Nl/min. Bore : 5.5 mm. Maximum working pressure : 16 bars. Available in 1/4 (8x13 mm), 3/8 (12x17 mm) or 1/2 (15x21 mm).

Codes Bobet : 10972, 10973, 10974

 See

Female nipple air BSP DN8 ISO B

Female nipple BSP parallel. Nickel-plated brass body. Nominal diameter : 8 mm. Flow : 2400 Nl/min. Bore : 8 mm. Maximum working pressure : 16 bars. Available in 1/4 (8x13 mm), 3/8 (12x17 mm) or 1/2 (15x21 mm).

Codes Bobet : 10990, 10991, 10992

 See

Male nipple air BSP DN6 ISO B

Male nipple BSP parallel. Nickel-plated steel body. Nominal diameter : 6 mm. Flow : 1250 Nl/min. Bore : 5.5 mm. Maximum working pressure : 16 bars. Available in 1/4 (8x13 mm), 3/8 (12x17 mm) or 1/2 (15x21 mm).

Codes Bobet : 10969, 10970, 10971

 See

Embout air mâle BSP DN8 ISO B

Male nipple BSP parallel. Nickel-plated steel body. Nominal diameter : 8 mm. Flow : 2400 Nl/min. Bore : 8 mm. Maximum working pressure : 16 bars. Available in 1/4 (8x13 mm), 3/8 (12x17 mm) or 1/2 (15x21 mm).

Codes Bobet : 10987, 10988, 10989
